此推桿包括普通絲桿和滾珠絲桿兩種傳動選擇

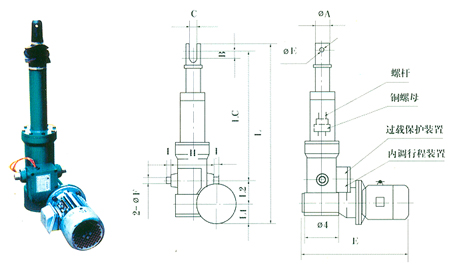

DTW型主要技術參數(shù)及外形尺寸
|
|
|
|
型號
|
功率KW
|
速度(mm/s)
|
行程S(mm)
|
L
|
Lc
|
B
|
L1
|
L2
|
φA
|
φF
|
φE
|
φ4
|
H
|
I
|
C
|
E
|
|
I
|
II
|
min
|
max
|
min
|
max
|
|
DTW300
|
0.37
|
3.8
|
7.6
|
427+S
|
427+2S
|
245+S
|
245+S
|
245+2S
|
20
|
100
|
121
|
42
|
25
|
12
|
140
|
210
|
25
|
20
|
450
|
|
DTW500
|
0.75
|
2.63
|
5.3
|
488+S
|
488+2S
|
276+S
|
276+S
|
276+2S
|
20
|
100
|
121
|
44
|
35
|
14
|
150
|
210
|
25
|
20
|
500
|
|
DTW700
|
0.75
|
4.63
|
9.26
|
496+S
|
496+2S
|
283+S
|
283+S
|
283+2S
|
25
|
100
|
121
|
52
|
35
|
14
|
170
|
210
|
25
|
20
|
540
|
|
DTW1000
|
1.1
|
4.67
|
9.34
|
496+S
|
496+2S
|
283+S
|
283+S
|
283+2S
|
25
|
100
|
121
|
52
|
35
|
14
|
170
|
210
|
25
|
20
|
540
|
|
DTW1600
|
1.5
|
3.7
|
5.4
|
596+S
|
596+2S
|
263+S
|
263+S
|
263+2S
|
35
|
125
|
176
|
64
|
35
|
25
|
220
|
288
|
30
|
35
|
607
|
|
DTW2500
|
2.2
|
2.4
|
4.8
|
736+S
|
736+2S
|
360+S
|
360+S
|
360+2S
|
40
|
150
|
186
|
80
|
40
|
30
|
310
|
288
|
30
|
40
|
762
|
|
DTW4000
|
2.2-3
|
2.4
|
4.8
|
736+S
|
736+2S
|
360+S
|
360+S
|
360+2S
|
40
|
150
|
186
|
80
|
40
|
40
|
310
|
310
|
40
|
40
|
762
|
|
DTW5000
|
2.2-3
|
2.4
|
4.8
|
736+S
|
736+2S
|
360+S
|
360+S
|
360+2S
|
40
|
150
|
186
|
80
|
40
|
40
|
310
|
310
|
40
|
40
|
762
|
|
|
